PYRAMID STUDIO

Temporary room layout

129 1/16″ W 163 15/16″ D 117 3/4″ H

Drag to orbit · scroll or pinch to zoom

WHAT IS IN THIS VERSION

Reference-based room study

Room: 10′ 9 1/16″ × 13′ 7 15/16″
Ceiling: 9′ 9 3/4″
Yamaha U1: 60″ W × 24″ D × 48″ H
Studio desk: 75″ × 35″
Library couch: 106″ × 40″
NI S61 Mk2: 39.61″ × 11.69″ × 3.31″
Proposed keyboard tray: 43″ × 15″ · hardware not selected
Trigon-6 · optional: 31.8″ × 12.7″ × 4.6″
Pērkons HD-01 · optional: 17.91″ × 12.40″ × 3.54″
SOLAR 42 · optional: 19.49″ × 12.60″ × 2.20″ including knobs

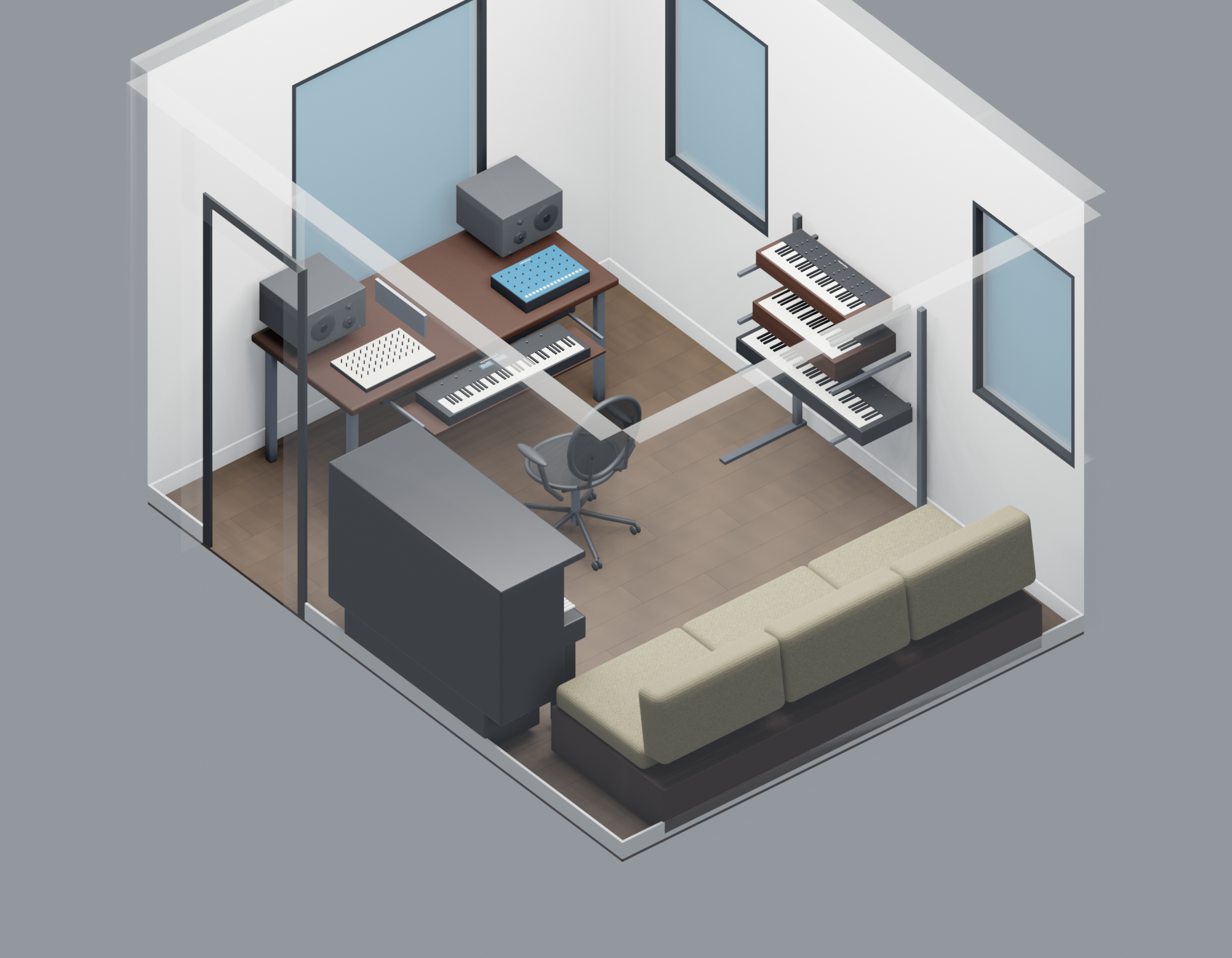

Layout

Front workstationDesk 2 inches from the window wall, S61 Mk2 on a proposed pull-out tray, ATCs on proposed desktop risers, Pērkons and ELTA SOLAR 42 on the desktop. M32 removed. Curved Aeron-inspired chair with woven mesh. White walls and muted brown oak flooring interpreted from the room photos.
Right-hand synth wallTriton, Model D and optional Trigon-6 on three tiers. Trident removed from this study.
Upright beside the pocket doorThe photo identifies a Yamaha U1; this model uses Yamaha’s U.S. 60 × 24 × 48-inch specification.
Centered seating + storageThe measured 106 × 40-inch couch faces the front window, with 11 17/32 inches on either side. Beige upholstery and cabinet base follow Chris Owens’s render and construction notes; cushion details and height are interpretations.

Scale, with open questions: Room and furniture footprints use your measurements. The NI 61-key controller is confirmed; Mk2 follows your inventory. Speakers shown are provisional SCM20ASL Pro Mk2 (9.84 × 15.43 × 17.72 inches, W × D × H): Guitar Center quoted that model, but Vintage King quoted SCM25A Pro Mk2. Neither quote confirms the purchased pair. Triton Extreme is confirmed; its 61-key variant (43.66 × 14.17 × 4.61 inches) remains an assumption. Current Model D (28.625 × 17.125 × 5.75 inches, panel down), stand dimensions, chair size and couch height remain provisional. The Yamaha U1 uses nominal manufacturer dimensions, not a tape measurement of your vintage piano. These are reference-based reconstructed models, not manufacturer CAD. Back and kitchen walls are cut away for visibility; the dark area outside the room is the viewer background, not a black wall.

Trigon-6 supports USB MIDI and can replace the near-seat controller; USB does not carry its audio. This version shows it on the optional upper tier.

Before buying hardware: Tray shown extended, with its underside 23.4 inches above the floor. Check knee clearance, desk apron/cable-tray interference and slide mounting in person. Riser height is provisional; verify desk and riser load ratings, speaker rear ventilation/cable clearance, and seated ear height. Speaker placement is a fit study, not an acoustically tested layout.

Sources: Sequential · ATC · ELTA
